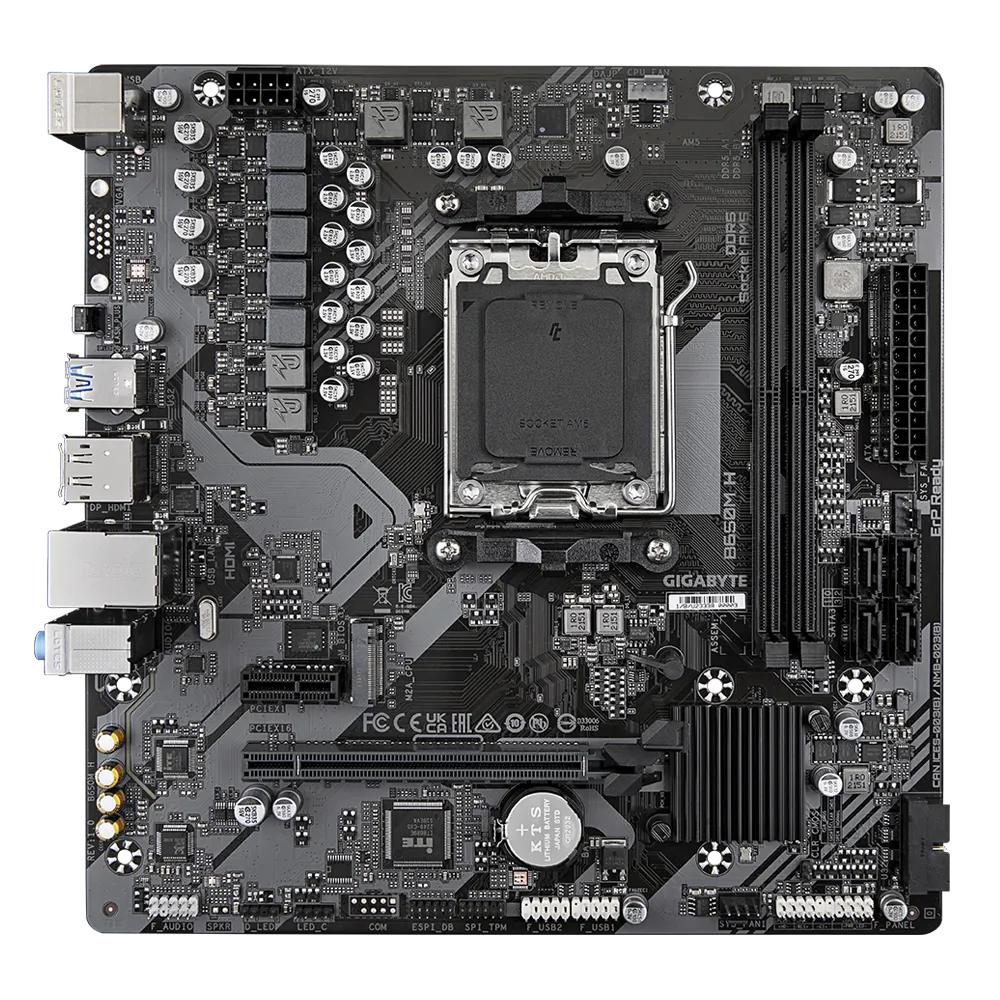

Tarjeta Madre Gigabyte B650M H, AMD Ryzen 7 y 8 Series, 2x DIMM DDR5 Hasta 96 GB

General

CPU: AMD Socket AM5 support for AMD Ryzen 7000 Series Processors

Chipset: AMD B650

Bancos de memoria: 2 x DDR5 DIMM sockets - soporta hasta 96 GB (48 GB por DIMM de capacidad)

Arquitectura: Dual channel

Velocidades soportadas: Soporte para memorias DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s

Tipo de memorias soportadas: Soporte para modulos de memoria no-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16, AMD EXtended Profiles for Overclocking (AMD EXPO) y Extreme Memory Profile (XMP)

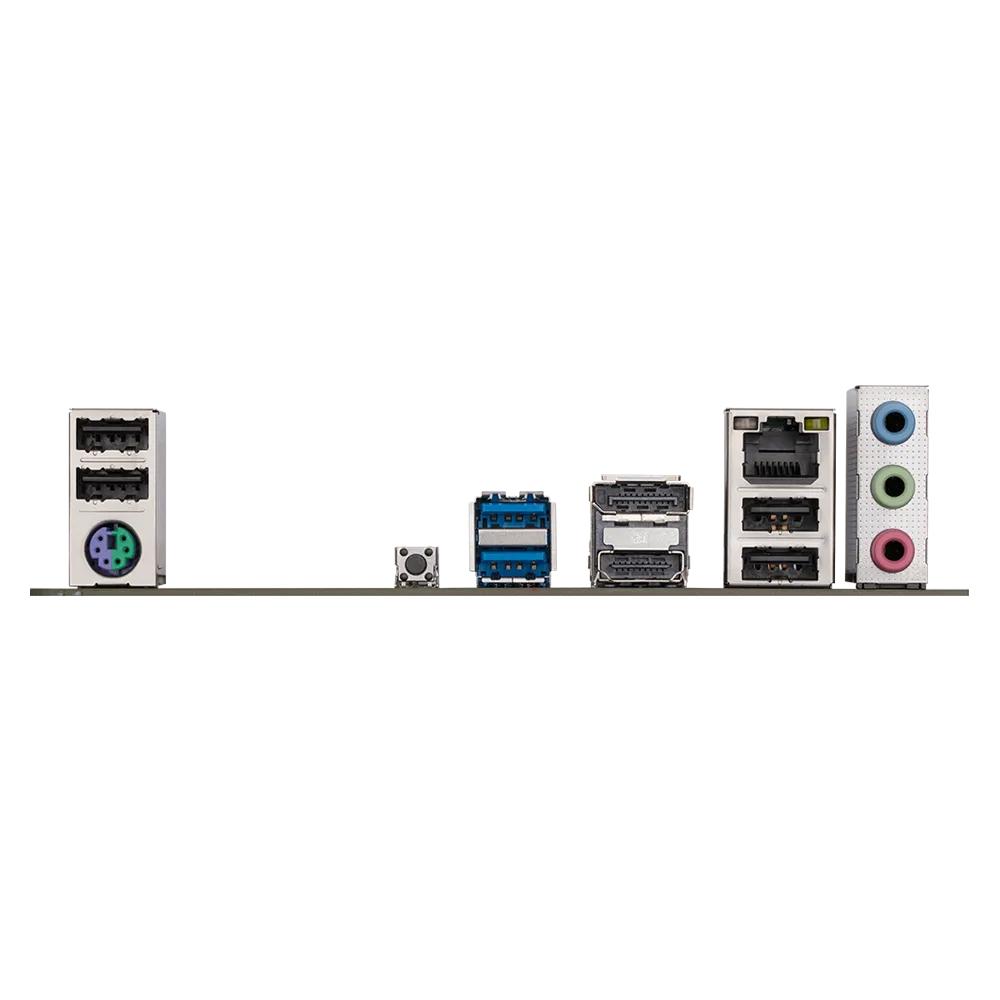

Onboard Graphics: Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Audio: Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel

LAN: Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Expansion Slots (CPU): - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Expansion Slots (chipset): - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface (CPU): - 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)

Storage interface (Chipset): - 4 x SATA 6Gb/s connectors
